Romanian ALCO classes and export versions

A collection of phots taken by myself, Ian Demaine and Mircea Dorobantu. (A special mention mention should go to Ian, he was the person who invited me to Romania, Ian sadly died with cancer at the age of 32). Also thanks go to Antonio Bianco, Neil Robinson and Romain Viellard for their assistance. 66.0001 photo from Rolf's ALCoWorld. (December 2001, with deepest sadness I hear of the death of Antonio Bianco also). A word document of location of the CFR ALCO's is here, can anyone update sightings please?

CFR Class 61
Only two class 61's were built, in 1984 and 1985 by Electroputere, both worked off Cluj Napoca, usually found on Expresses A421/422 between there and Satu Mare via Oradea. I've travelled on this train with 18 carriages! Initially we were under the impression only 61.0001 existed, only three years later someone saw 61.0002, these photos show 61.0001 on an International train to the Hungarian border, possible a very rare working, apparently due to being late off maintenance we were told. Both Locos are now out of use at Cluj Napoca. They had V12 ALCO engines, rated at 2640hp. Very well liked by the crew we spoke to because of the extra power.

cfr610001c.jpg (52830 bytes) cfr610001d.jpg (46751 bytes) cfr610001b.jpg (49239 bytes) cfr610001a.jpg (47167 bytes)

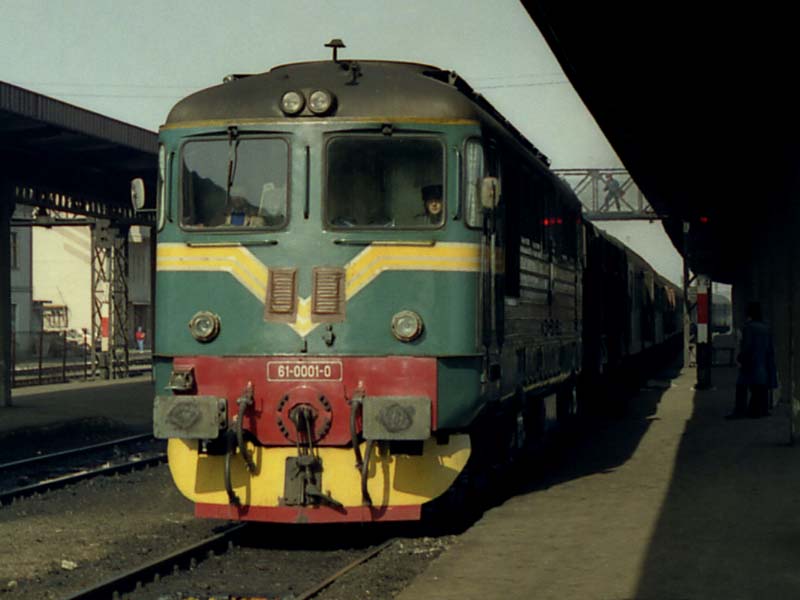

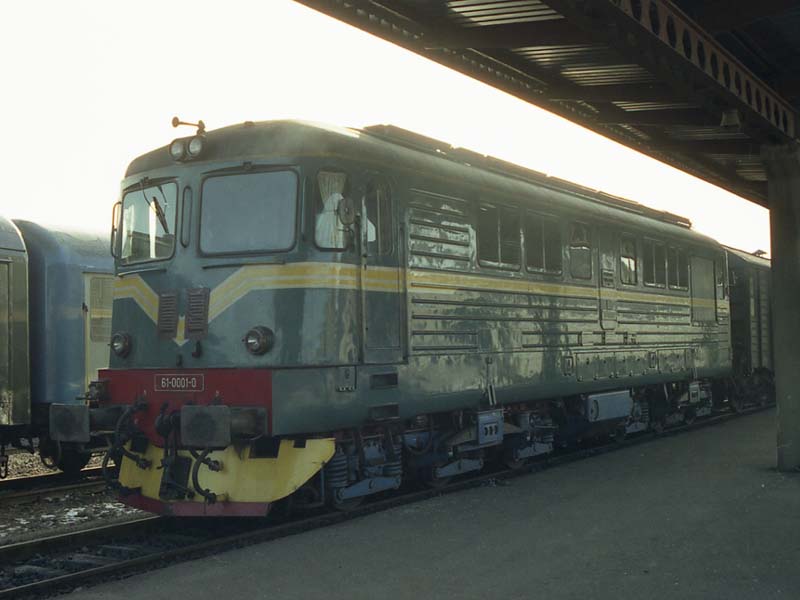

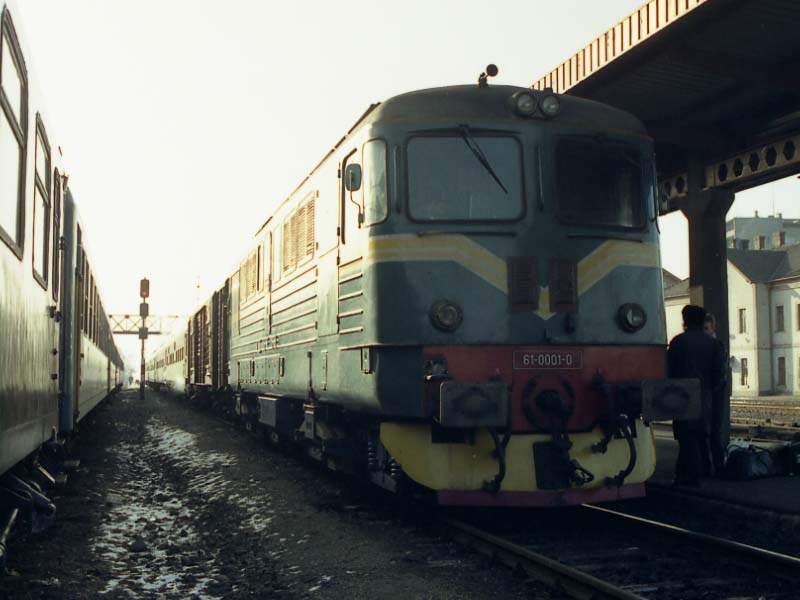

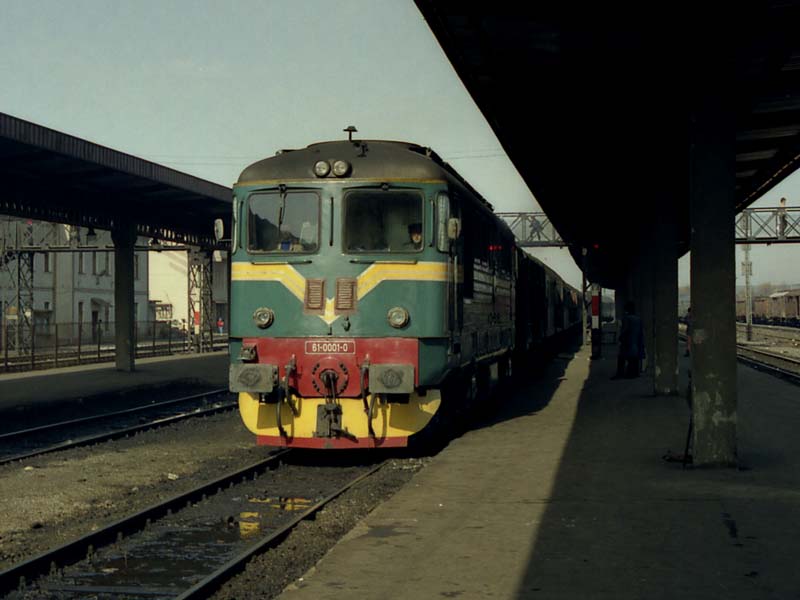

61.0001 is seen at Oradea train R31, the westbound "Balt Orient Express" on the morning of 25 February 1992. PW 61.0001 is seen at Oradea with an eastbound Budapest - Bucuresti International express. Taken on the morning of 25 February 1992. PW

CFR Class 64
There were seventeen class 64's built for CFR. But other locos of this type were also built for industrial companies, and they were class  LDE150 (Faur's commercial name for this loco). LDE 150.020 was still working on summer 1999, for the SUDAREC company (rail welding company), and could so be seen on the CFR network hauling works trains. It was painted the same as the CFR's 64. 64.0011 and 64.0012 were equipped for multiple and push-pull operation. The 64.0007 was equipped in Dej depot with a transversal coupling between the bogies, but never tested, because of the lack of batteries, it was withdrawn later. The 64 was fitted with ALCO license, 6 R 251 FLO, 6 cylinders in line. Power: 1521 hp. Top speed: 100 km/h. One was sold to Italy in 2003 as a contactors loco!

cfr640007a.jpg (46798 bytes) cfr640007b.jpg (47733 bytes) cfr640012.jpg (50290 bytes) 64sudarec.jpg (49650 bytes)

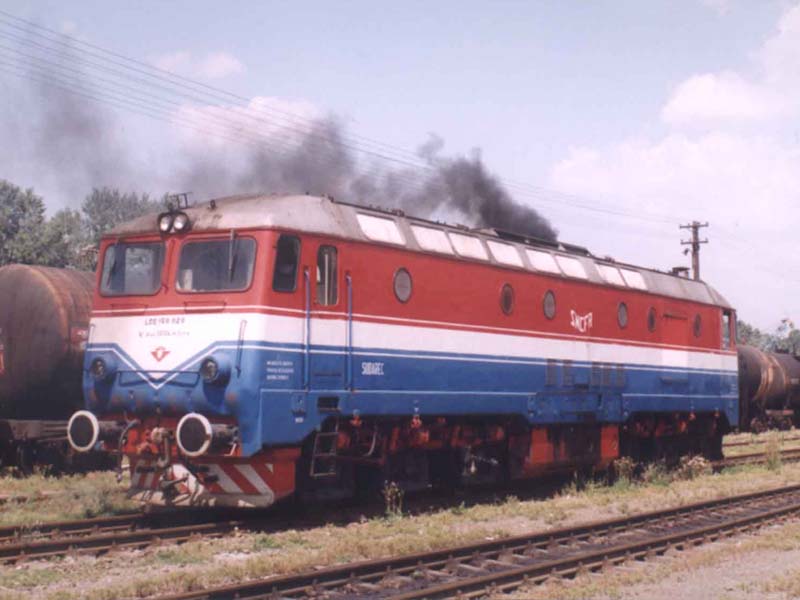

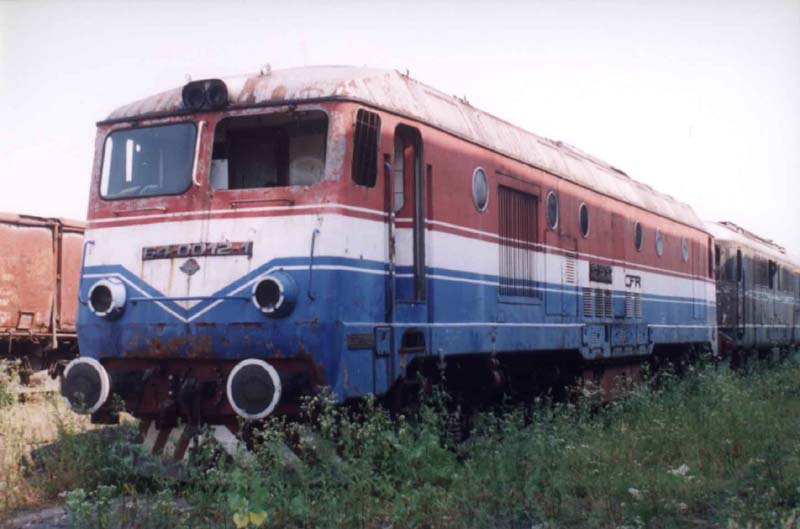

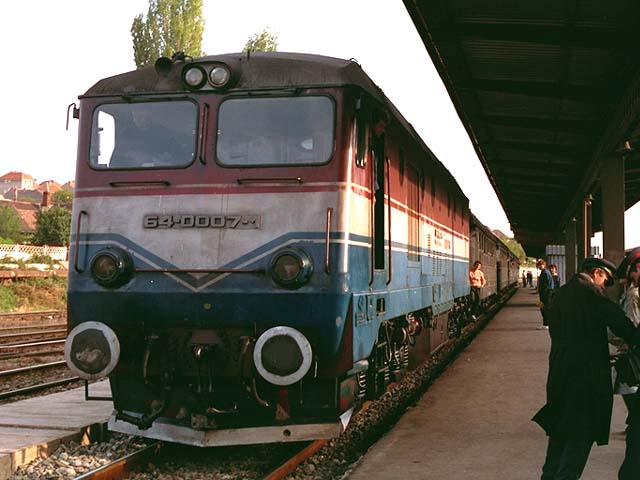

64.0007 is seen at Oradea, with Mixed train 3192  to work the branch train to Ceresig, the line was often worked by these Loco's. Oct 8th, 1992. The line is now closed. ID 64.0012-1, see in a very poor condition at Satu Mare, 10.07.1999. MD A private 64, used on contractors trains (LDE 150-020 SUDAREC), Dornesti, 20.07.1999. MD
Prototype 060-DF-001
Test loco 060-DF-001 was a one off prototype fitted with thyristor control of the electric transmission. The loco was not a success and was scrapped in 1985.

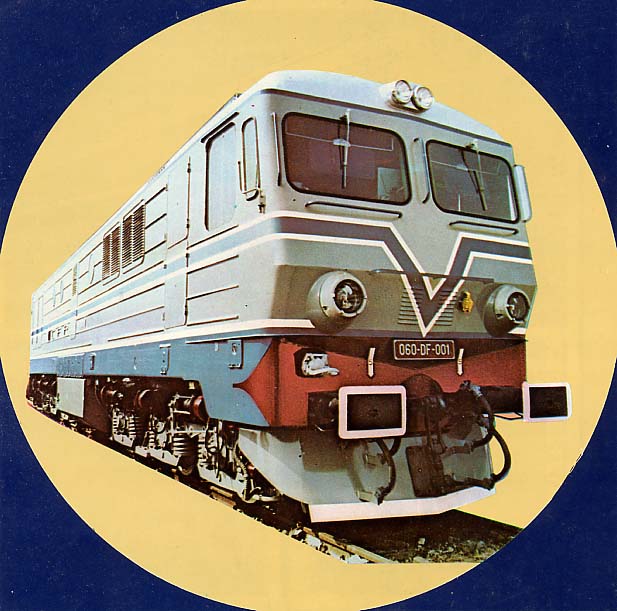

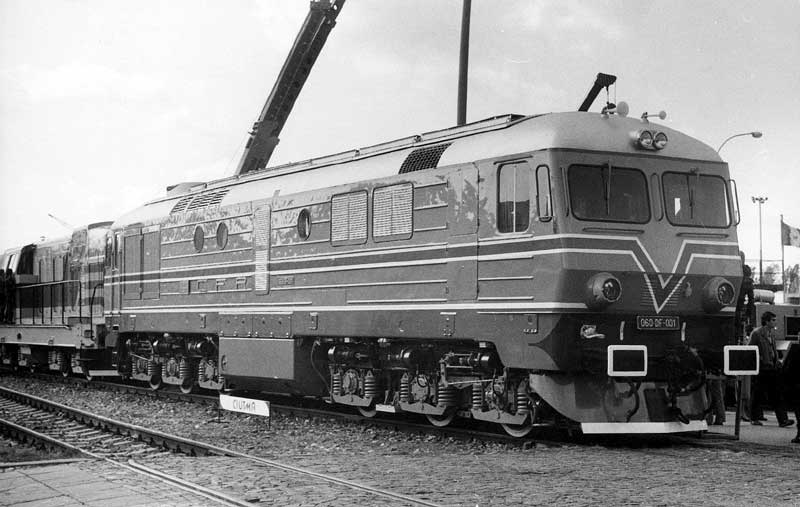

060-DF-001 pictures from official Electroputere leaflet. 060-DF-001 at the Bucuresti trade fair in 1978. Photo from Locomotives International
CFR Class 66/67
The class 66 and 67 are really one class, the 66 being the freight version, the 67 being the passenger version. Little is known of their duties, though likely in the north east as some are there abandoned in depots. Though 66.0004 was seen active near Cluj Napoca in 1995. Fitted with a 3000 horsepower V12 ALCO engine. The 67's were fitted with Electric train heating for passenger use, and were certainly used for a while.
cfr-67.jpg (104772 bytes) cfr670001b.jpg (46294 bytes) cfr670001a.jpg (49071 bytes) cfr670001.jpg (53613 bytes)

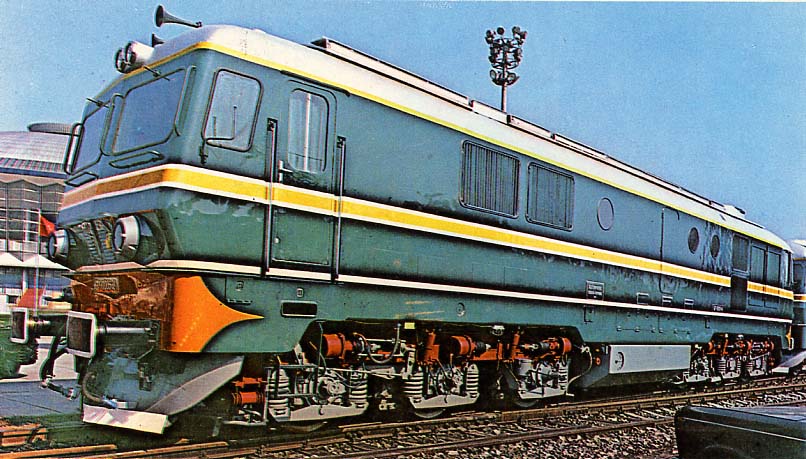

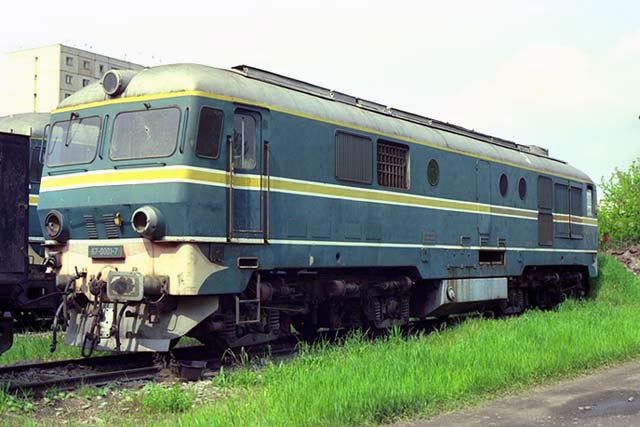

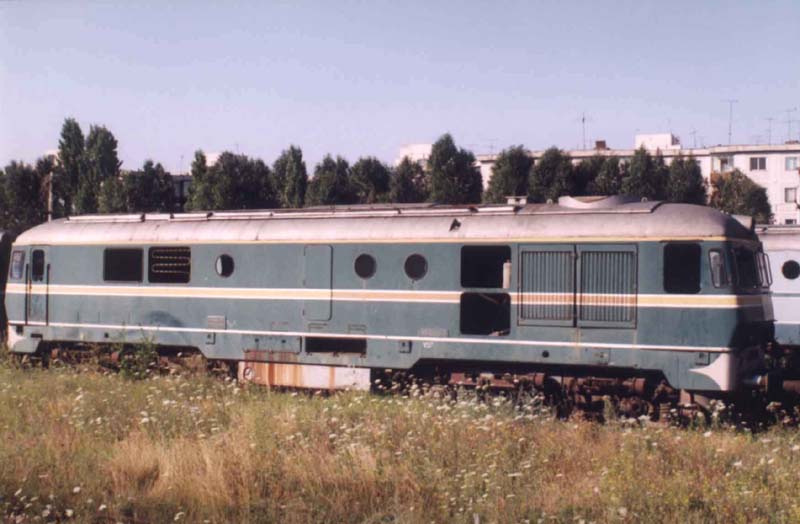

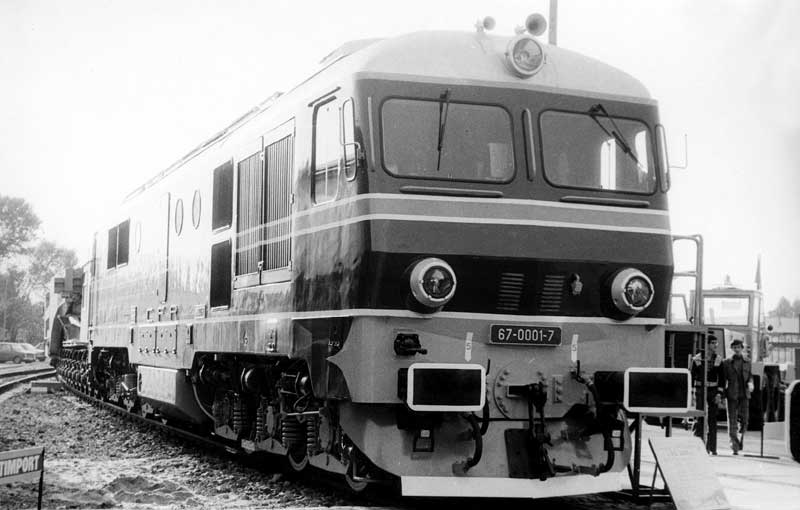

An Electroputere works photo of ex works class 67 Loco. 67.0001 at the Bucuresti trade fair in 1978. Antonio Bianco photo from Locomotives International 67.0001 on the depot at Iaşi, fitted with Electric Train heating. 6 May 1991. Ian Demaine. 67.0001 in a poor condition on the depot at Iasi, 19 July 1999. MD
cfr67_0002.jpg (108596 bytes) cfr670002.jpg (47696 bytes) cfr670002a.jpg (119219 bytes) cfr660006.jpg (54652 bytes)

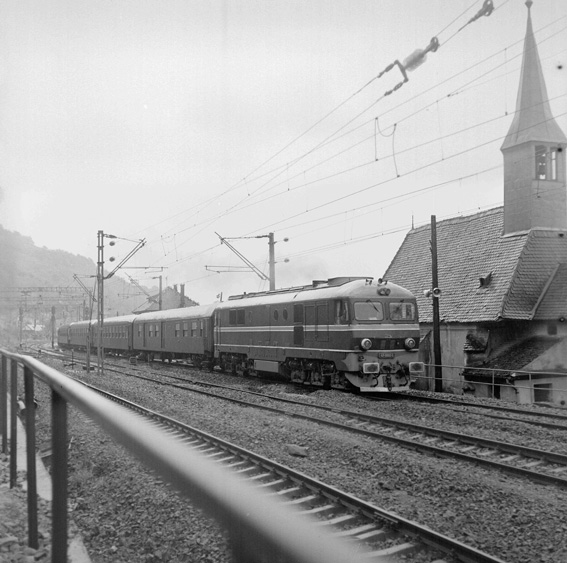

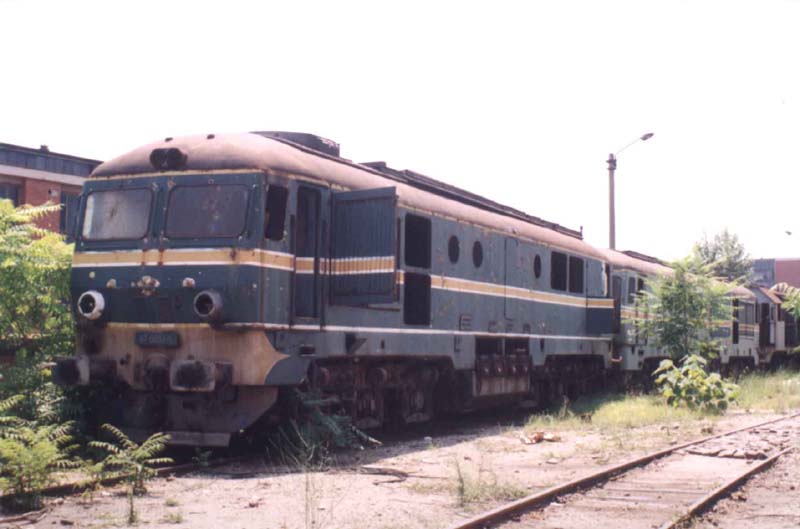

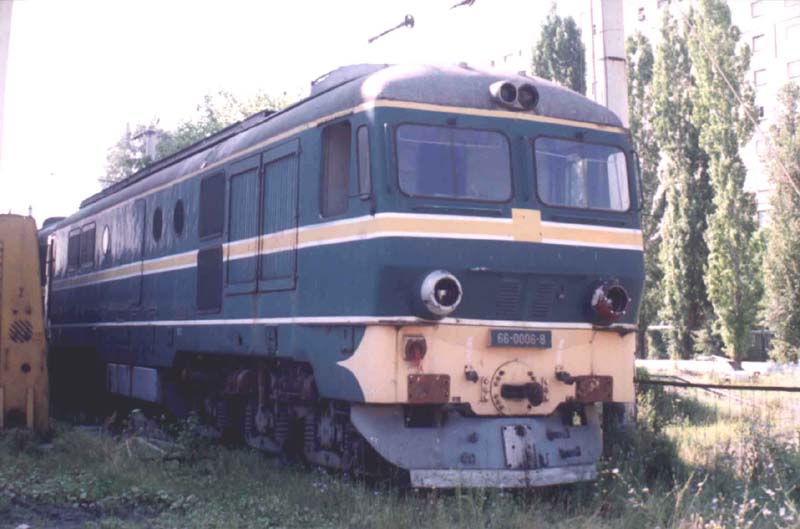

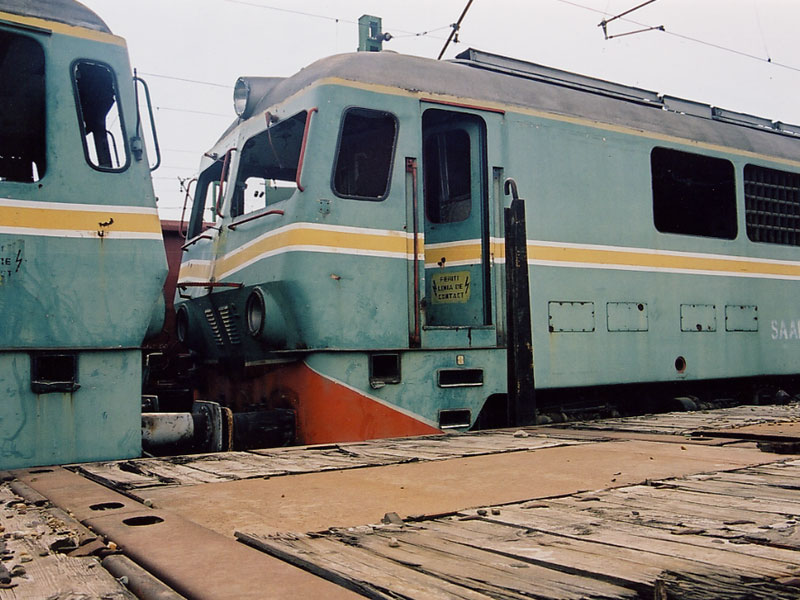

A VERY rare picture taken by Antonio Bianco of 67.0002 arriving at Sighisoara on a passenger train. 67.0002 in poor condition in the Electroputere works at Craiova, 30 June 1999. MD 67.0002 in poor condition in sidings opposite Craiova station, 7 April 2002 66-0006-8, in a poor condition on the depot at Iasi, 19 July 1999. MD
cfr660009.jpg (118567 bytes) cfr67-251.jpg (44284 bytes) cfr670013.jpg (59646 bytes) cfr-66-67.jpg (112812 bytes)

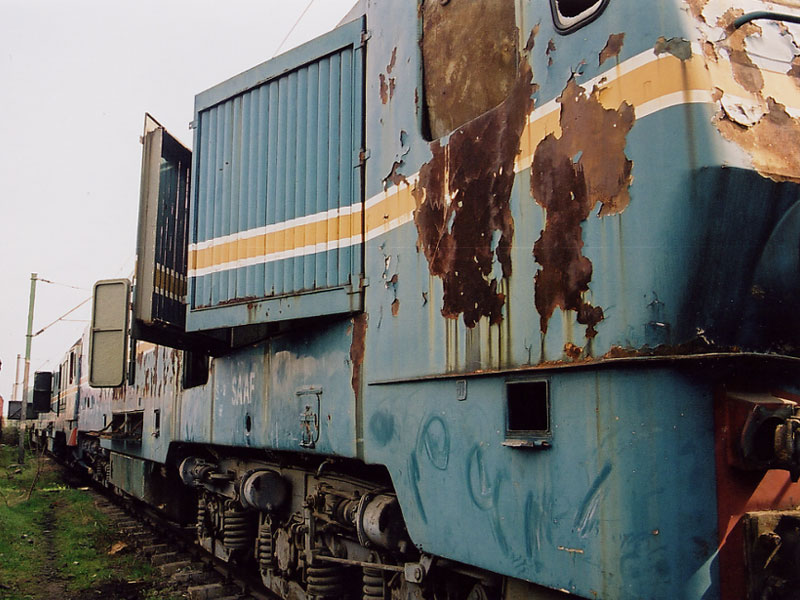

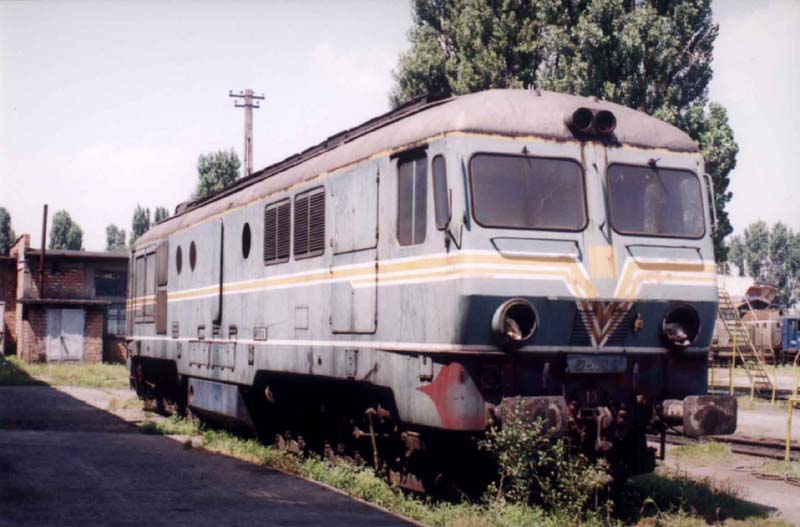

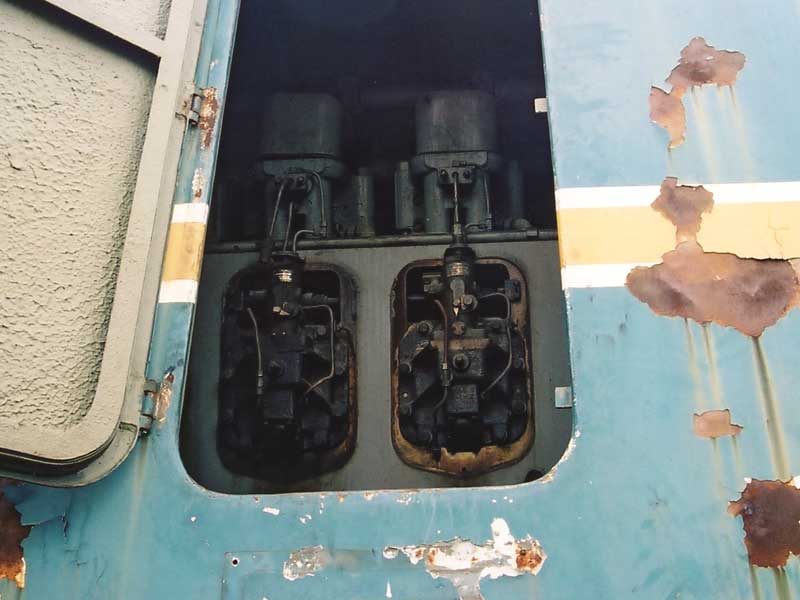

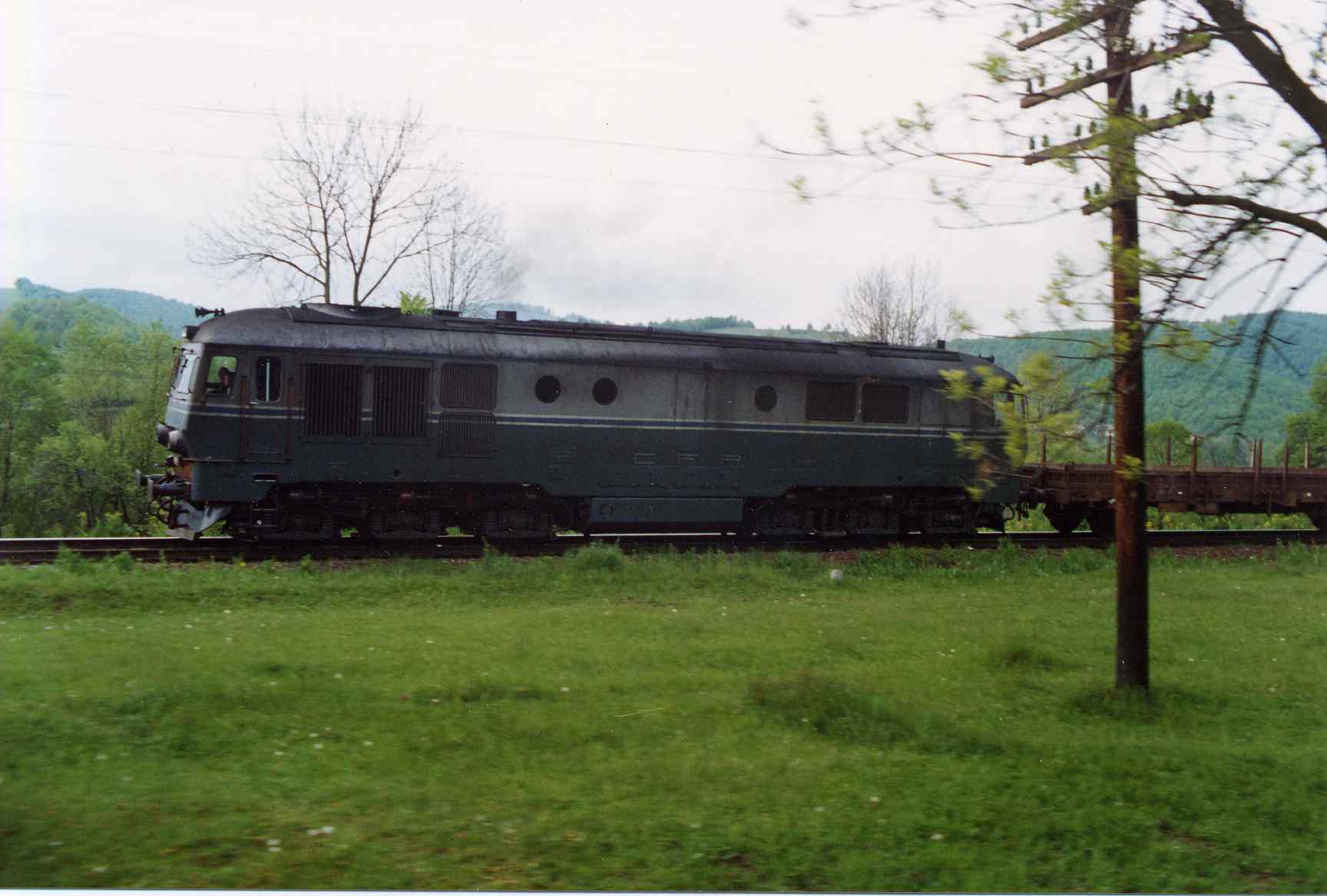

67.0009 in poor condition in sidings opposite Craiova station, 7 April 2002 12-251 engine inside 67.0009, looking quite intact!!! 7 April 2002 67.0013-2, in a poor condition on the depot at Pascani, 19 July 1999. MD A very rare photo of a 66 on a freight between Borod and Pojeni on 11 May 1994. Pierre Auriol
CFR Class 70/71
Like the 66/67, the class 70 and 71 are really one class, the 70 being the freight version, the 71 being the passenger version, they share the same number block. Fitted with a 4000 horsepower V16 ALCO engine. The 71's were fitted with Electric train heating for passenger use, and were possibly used for a while, however being the class were not in use for long due the high running costs of such a big locomotive.

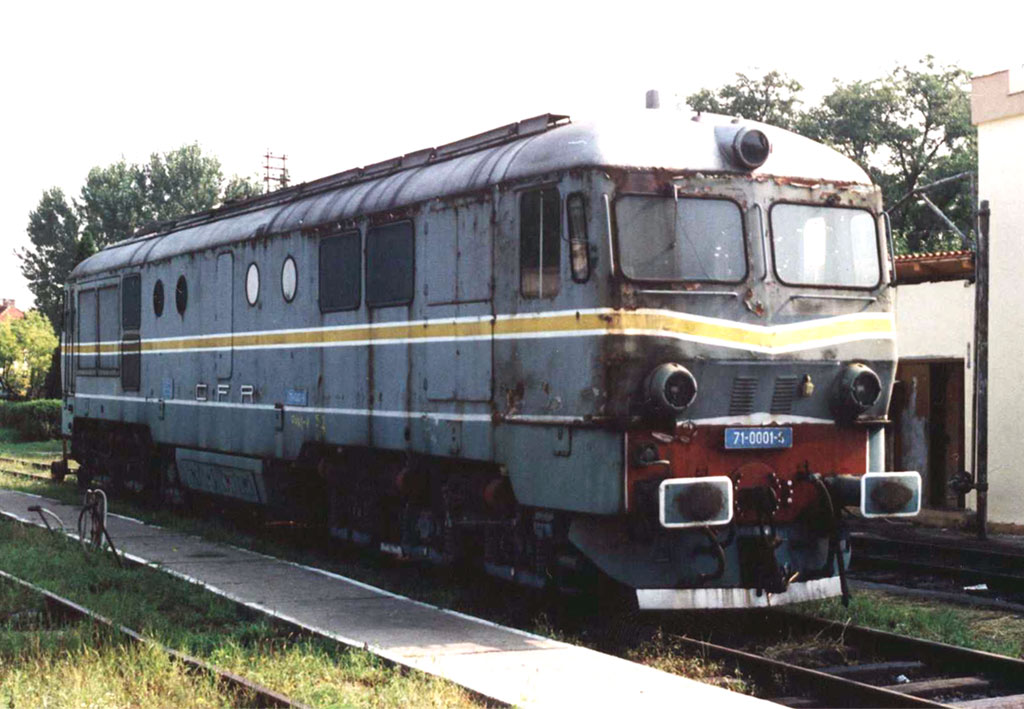

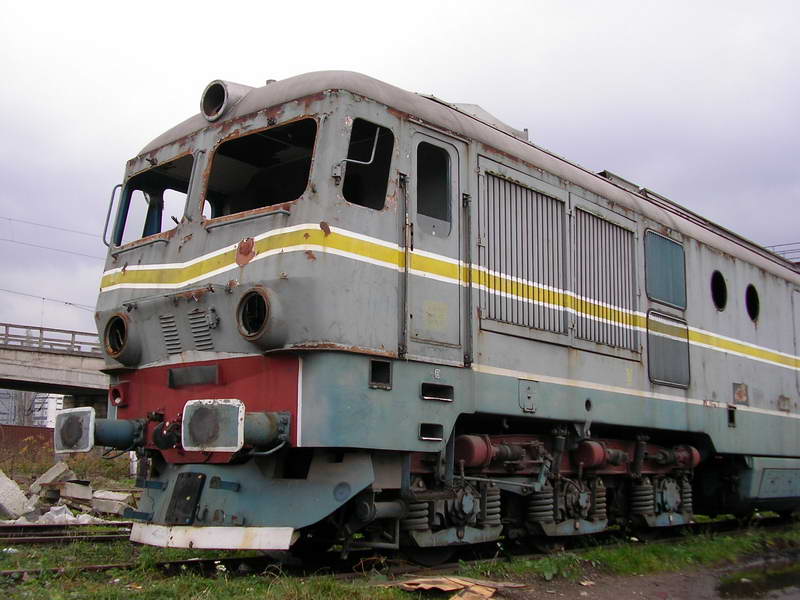

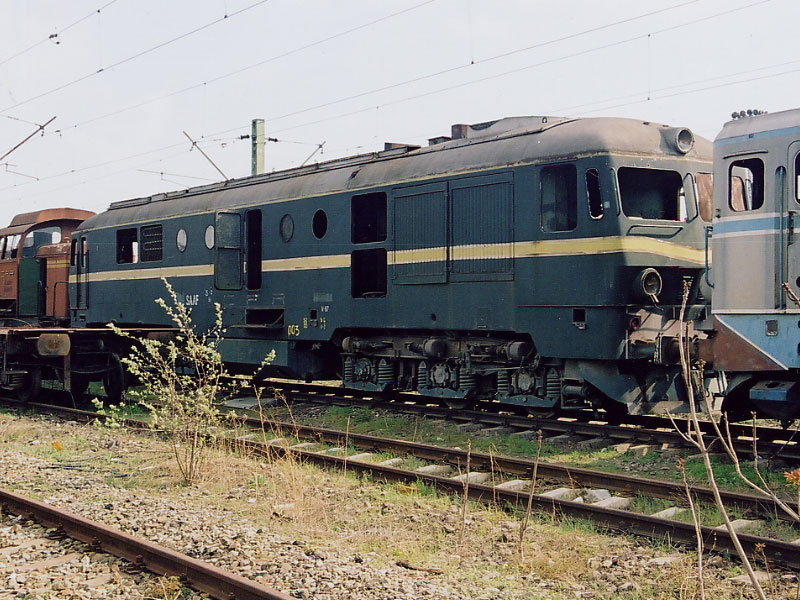

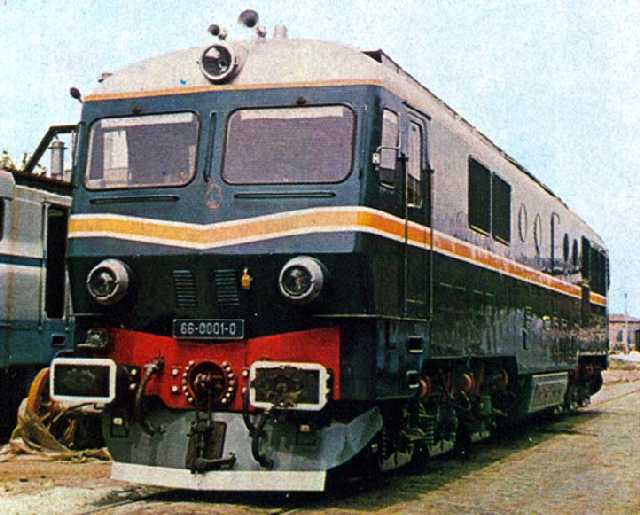

70.0001, actually numbered as 66.0001, the four windows on side is clue it's a 70/71 71.0001 at Ramnicu Valcea on 20 August 2002. Photo by Andrei Berinde A recent photo of long withdrawn 71-0001 70.0003 in poor condition in sidings opposite Craiova station, 7 April 2002
cfr700008.jpg (42401 bytes) cfr700010a.jpg (51708 bytes) cfr70-12ros.jpg (80412 bytes) cfr700012.jpg (36868 bytes)

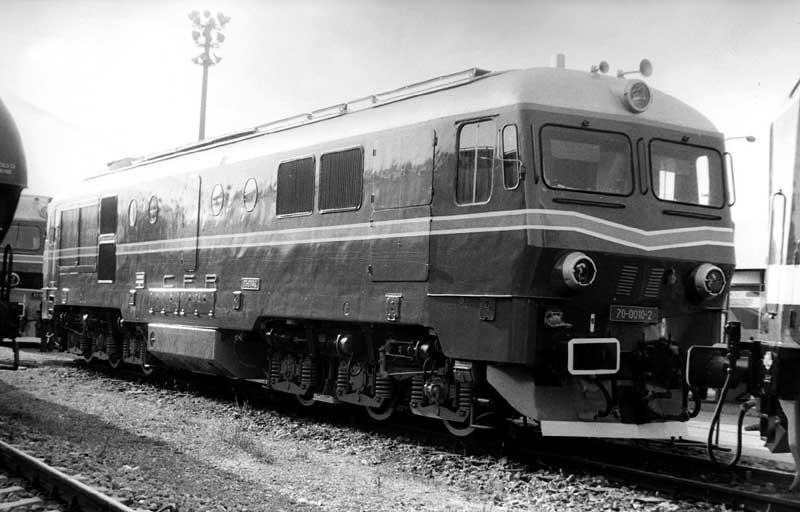

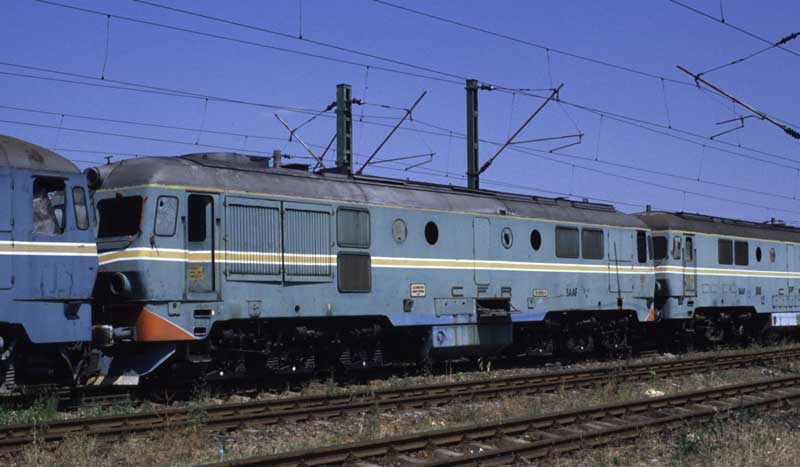

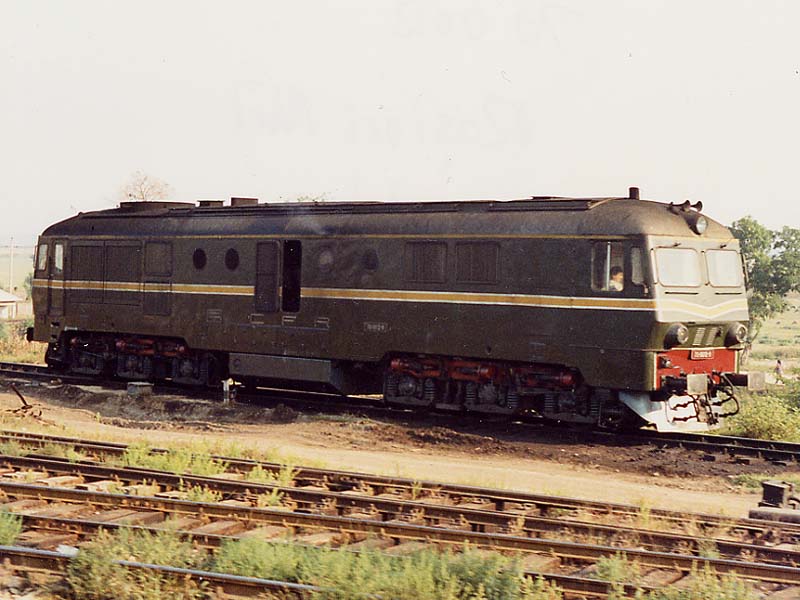

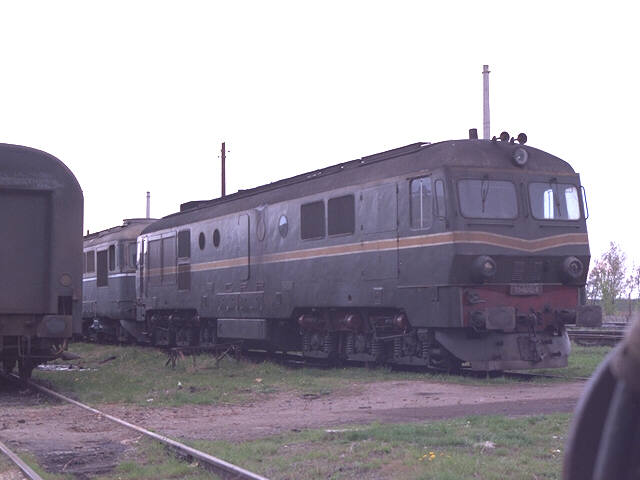

70.0008 dumped at Craiova on it's way to be scrapped in June 2000. Han Duijve 70.0010 at the Bucuresti trade fair in 1978. Antonio Bianco photo from Locomotives International 70.0012 is seen arriving at Rosiori Nord depot light engine 10 September 1991. Ian Demaine 70.0012 is seen stabled at Rosiori on 10 September 1991. Ian Demaine

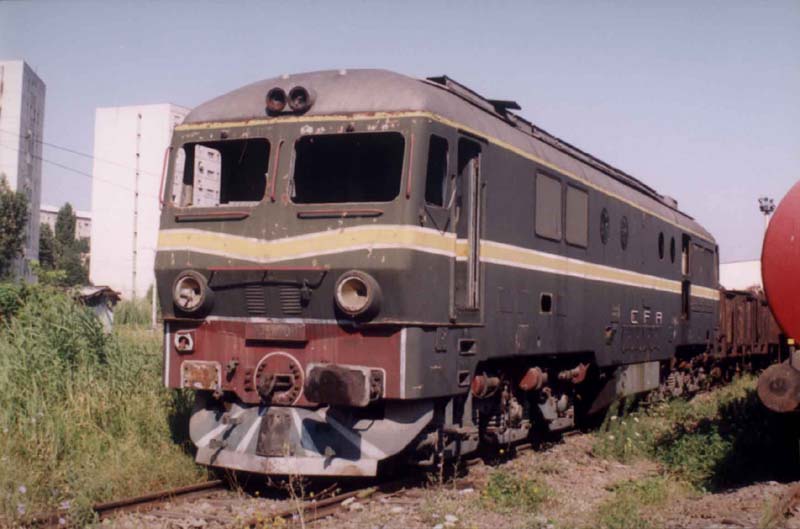

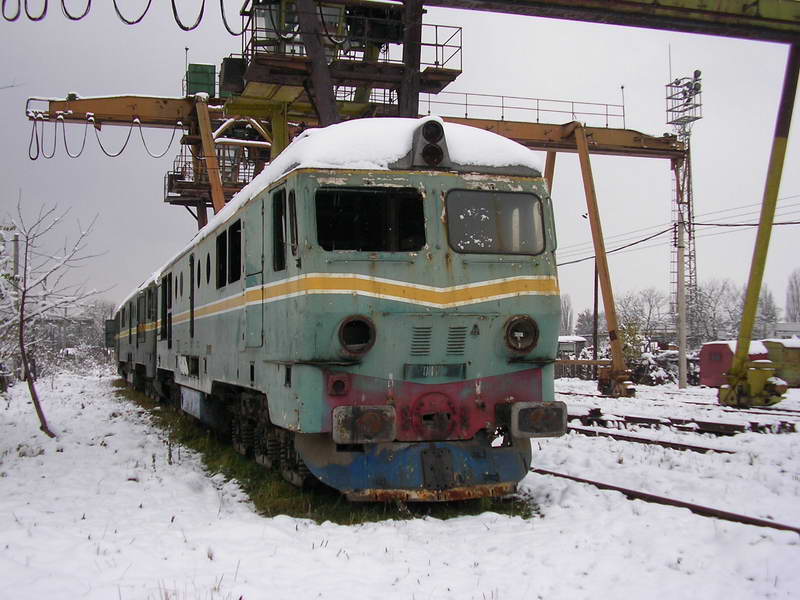

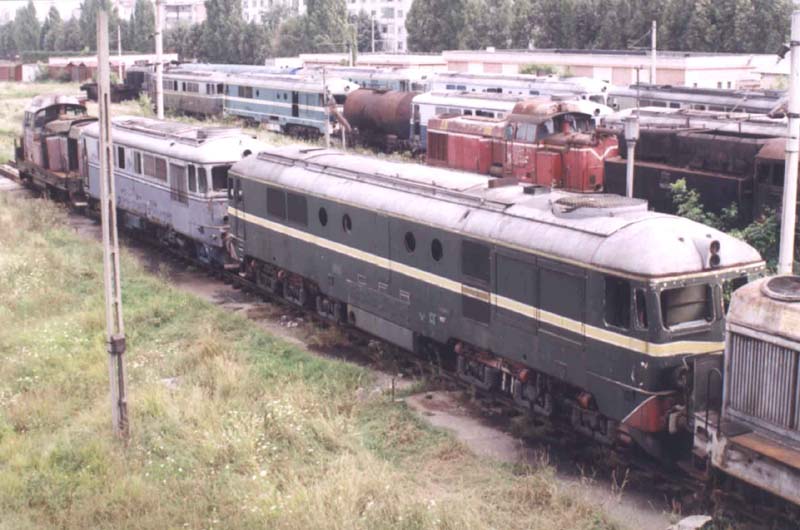

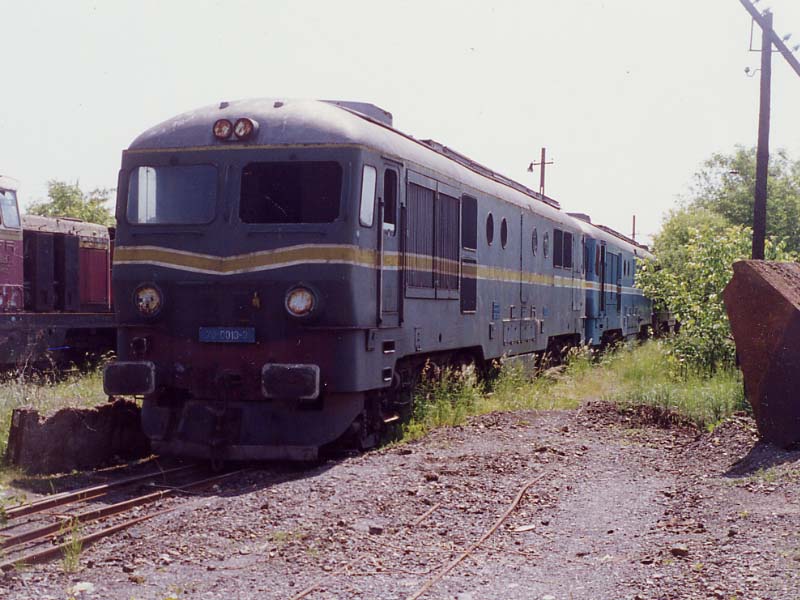

70.0013 is seen dumped at Oradea. It was in poor condition. NR 70.0015 in poor condition on the depot at Iasi, 1 August 1999. MD A recent photo of long withdrawn 70-0017 70.0020 in poor condition on the depot at Iasi, 19 July 1999. MD

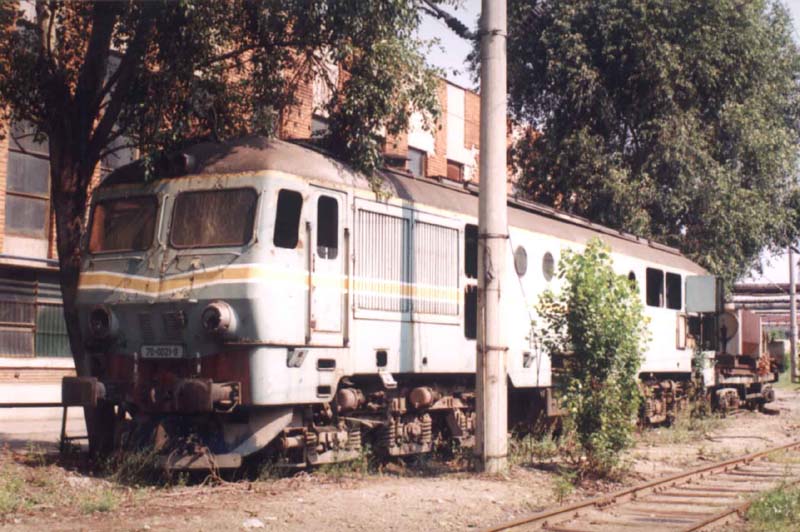

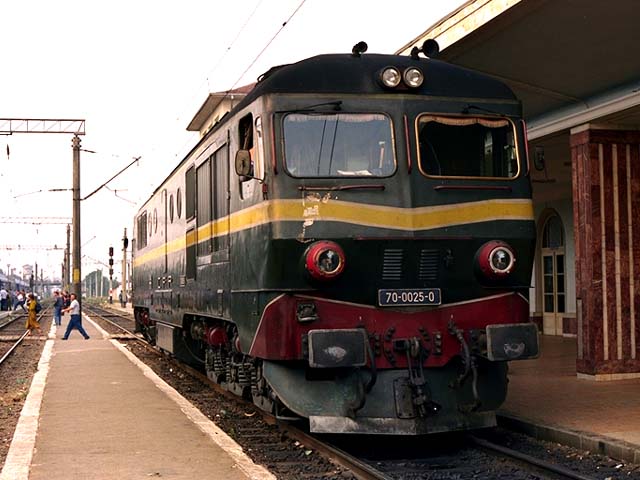

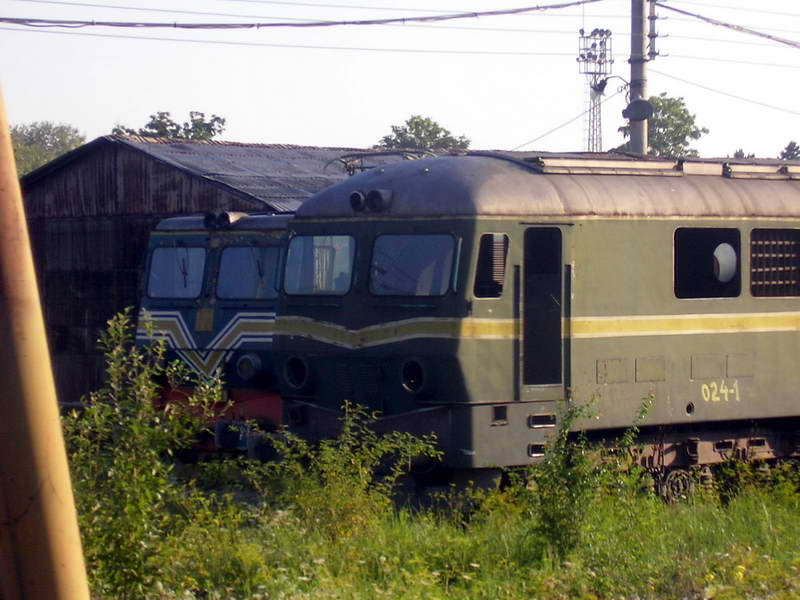

70.0021 in poor condition in the Electroputere works at Craiova, 30 June 1999. MD A recent photo of long withdrawn 70-0024 70.0025 is seen at Marasesti, waiting to work a freight train. Seen on September 13 1991. Photo by Ian Demaine. 70.0025 is seen at Marasesti, waiting to work a freight train. Seen on September 13 1991. Photo by Ian Demaine.
cfr700027a.jpg (66193 bytes) cfr700027.jpg (64593 bytes) cfr700027b.jpg (63841 bytes) cfr700028.jpg (46511 bytes)

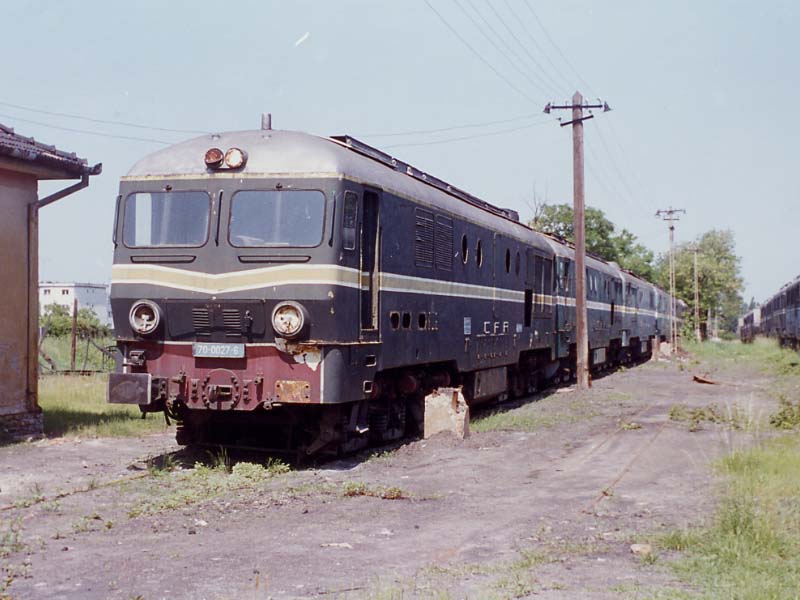

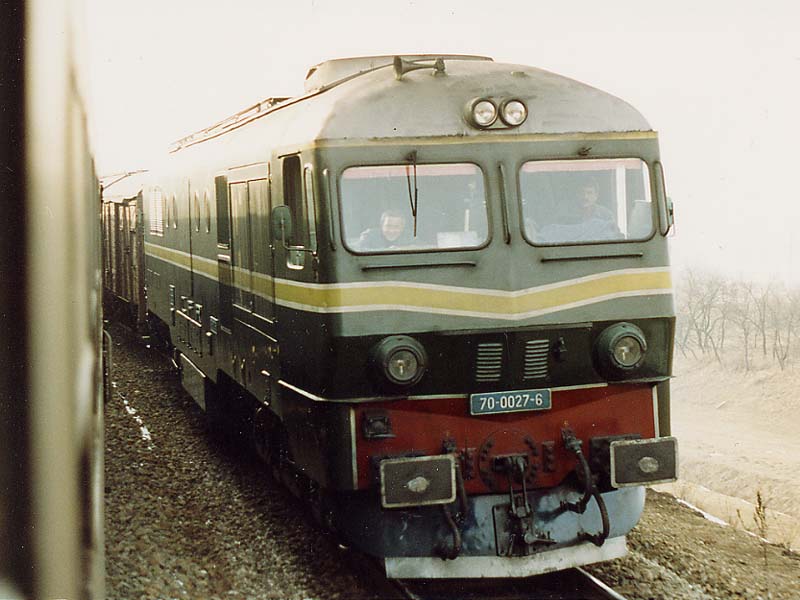

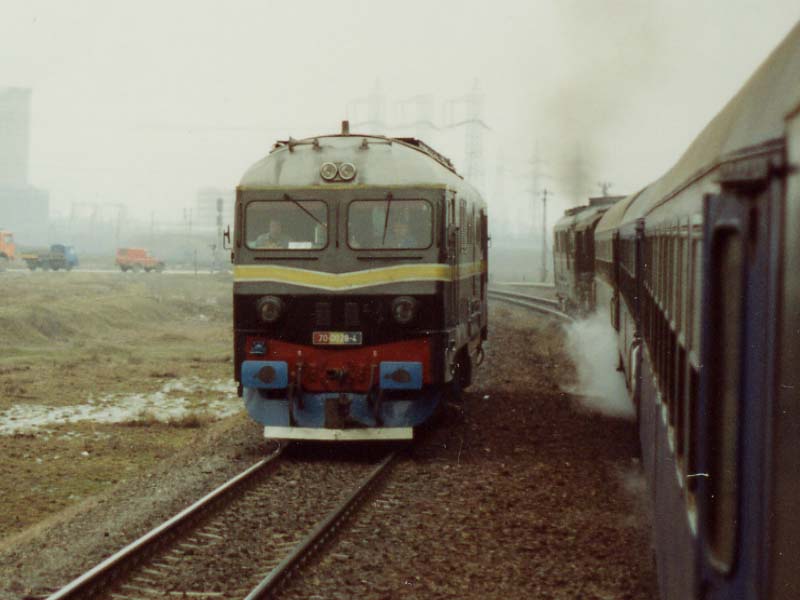

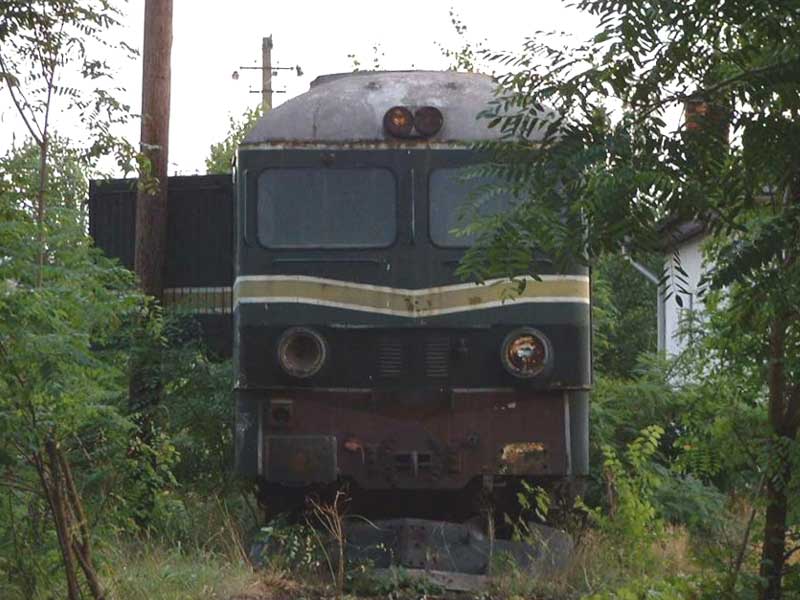

70.0027 on a freight between Cluj Napoca and Oradea in early 1990's. ID 70.0027 is seen dumped at Oradea. It was in poor condition. NR 70.0027 still at Oradea in summer of 2003. Now nearly covered in weeds! Jiga Dan 70.0028 is seen light engine near Oradea on 4 March 1991. ID
cfr700029.jpg (43482 bytes) cfr700032.jpg (43716 bytes) cfr700010.jpg (38133 bytes) cfr-70class.jpg (65865 bytes)

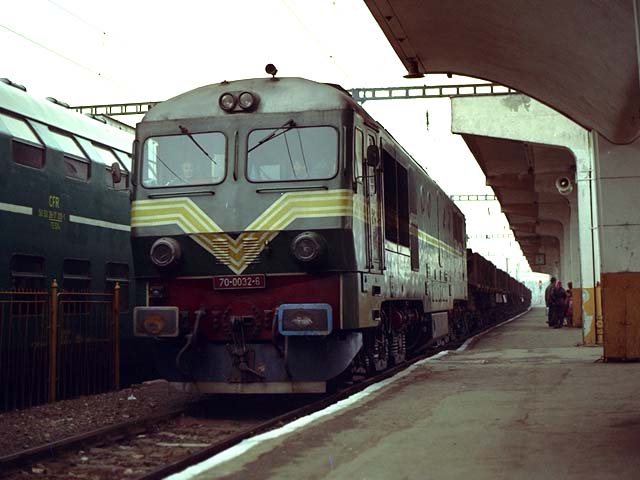

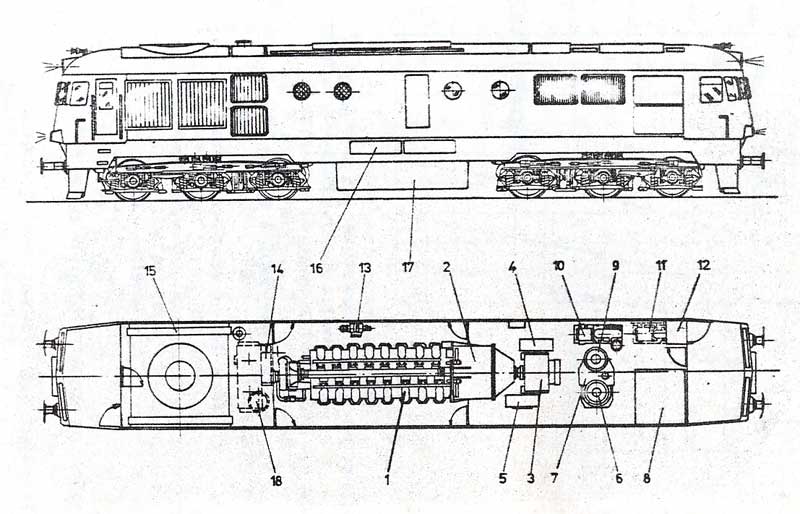

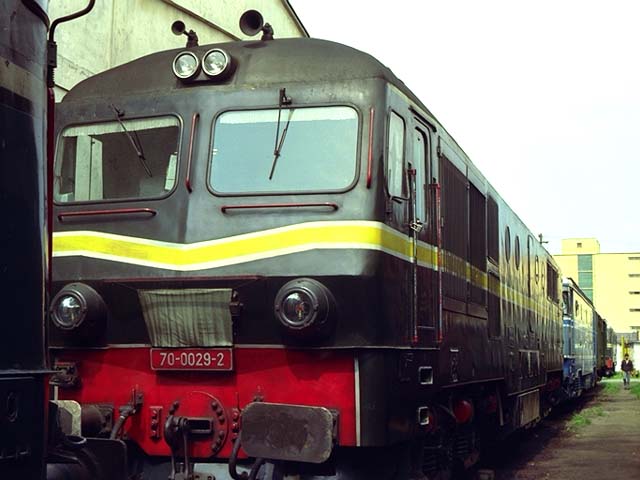

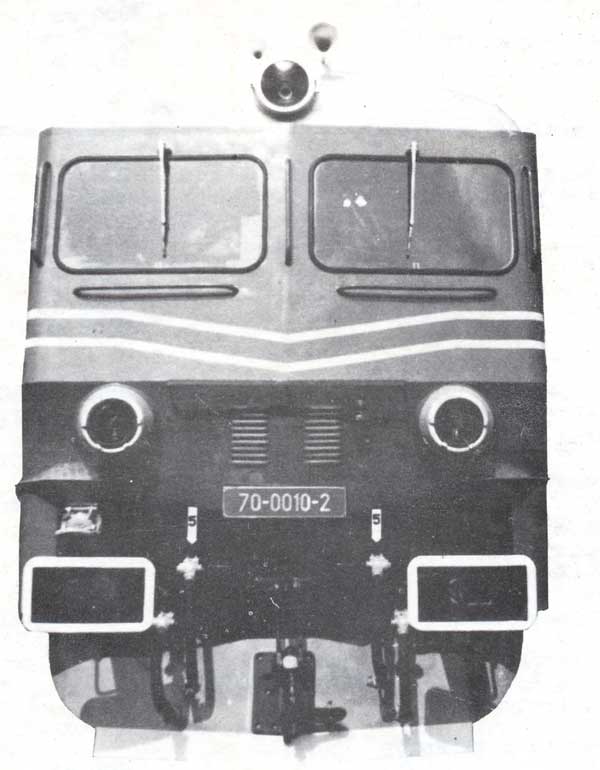

70.0029 is seen parked on the depot at Iasi, complete with padlock and chain on cab doors. 6 May1991. Ian Demaine. 70.0032,  in the platform at Cluj Napoca on a freight. 7 May 1991. Ian Demaine. Electroputere leaflet photo of 70.0010 Outline drawing from Electroputere leaflet
Greece LDE4000 A-551 class, more photos
The "Craiova's" as they were known in Greece finished in late 1990's by early 2001 they were all scrapped with exception of A-557, it does not have an engine, so unlikely ever to run again.
ose558cr.jpg (134659 bytes) ose558cr2.jpg (86142 bytes) ose558er.jpg (70050 bytes) del4000.jpg (118214 bytes)

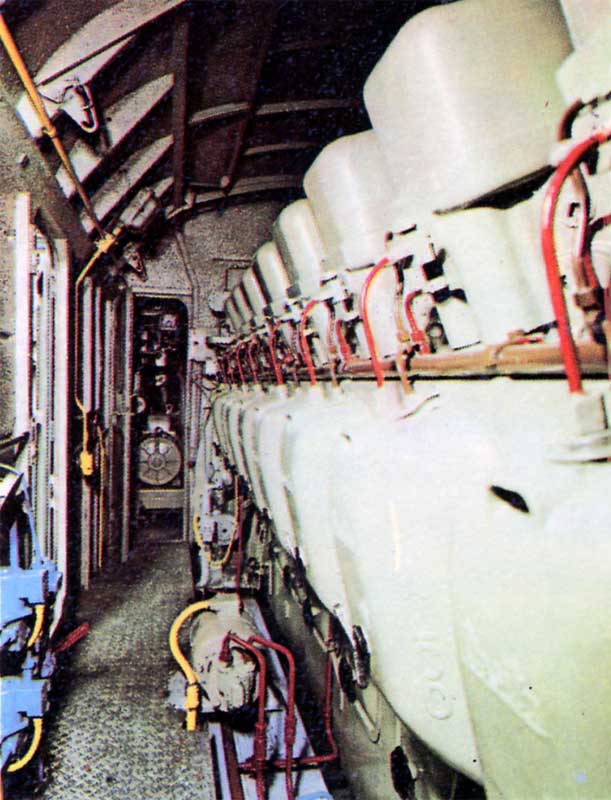

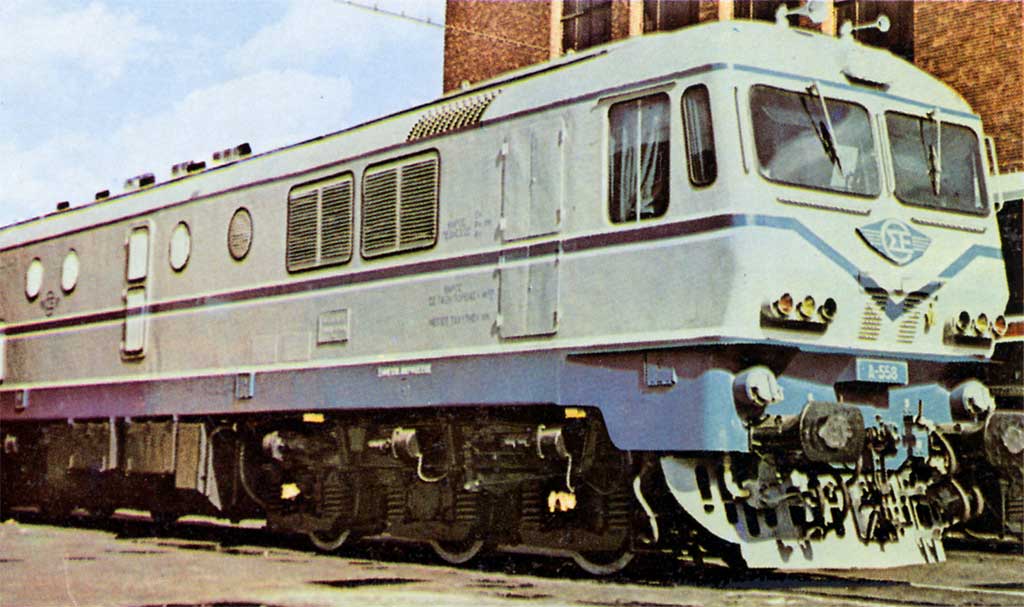

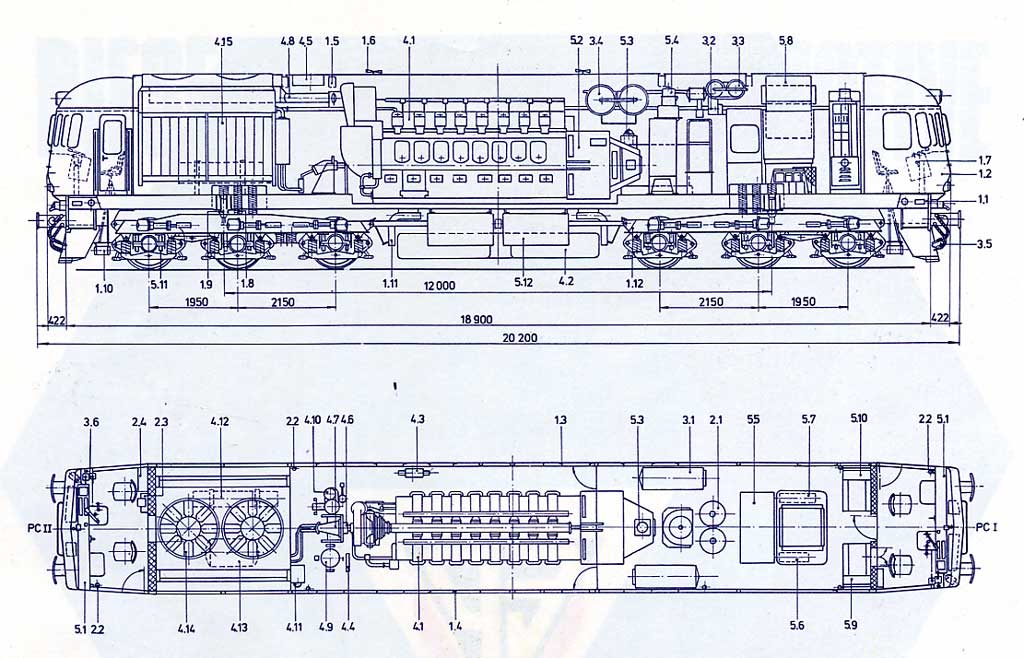

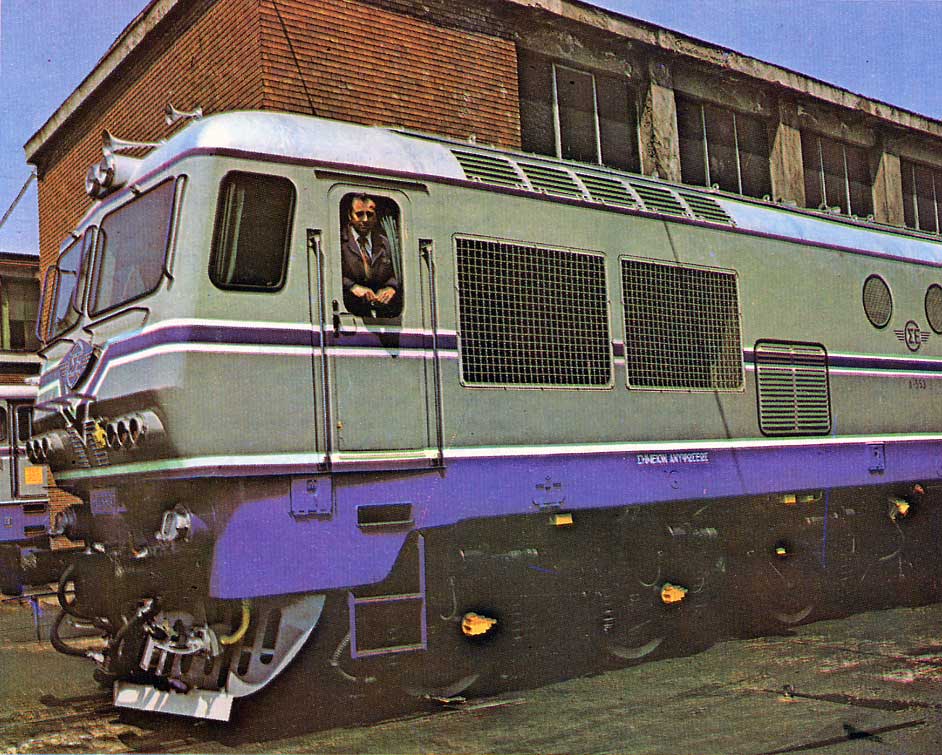

OSE A-558 at Craiova works after repairs from accident damage OSE A-558 at Craiova works after repairs from accident damage Engine room of a LDE4000 showing the big 16-R251 engine Outline drawing from Electroputere leaflet
Iran LDE2640 60-350 class
All locos now stored in Iran and out of use.
iran60b.jpg (75374 bytes) rai-60354.jpg (39722 bytes) iran60a.jpg (49757 bytes) rai-60359.jpg (50791 bytes)

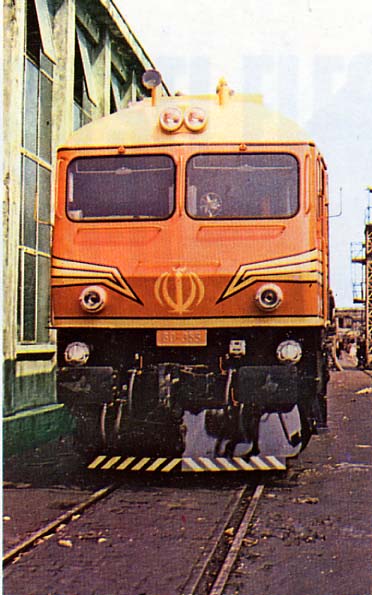

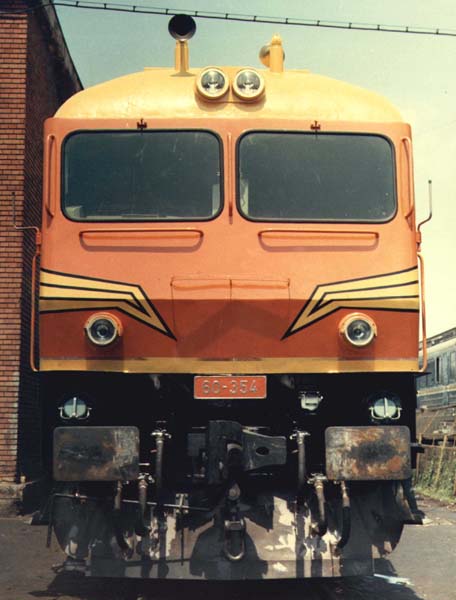

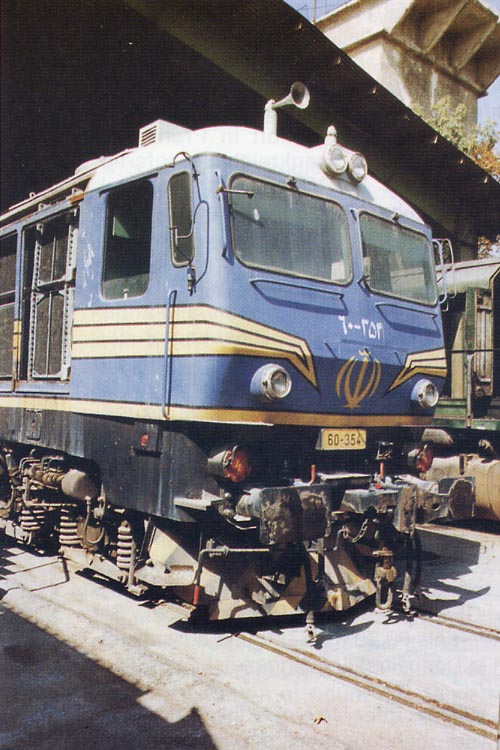

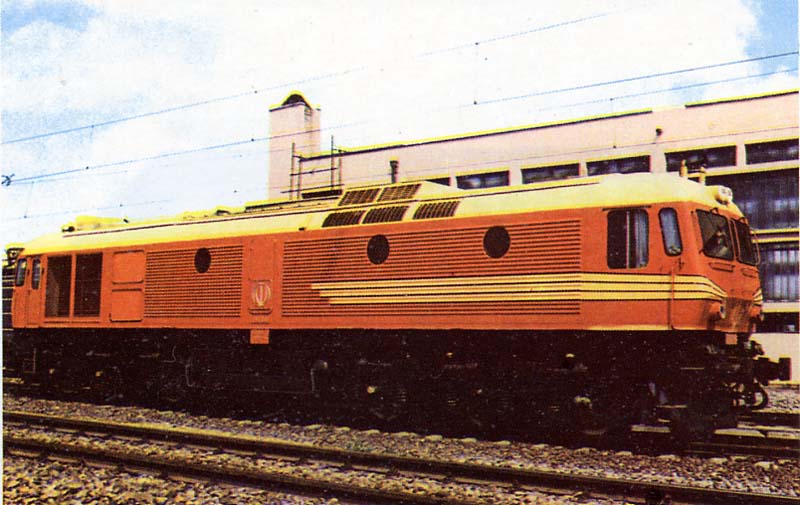

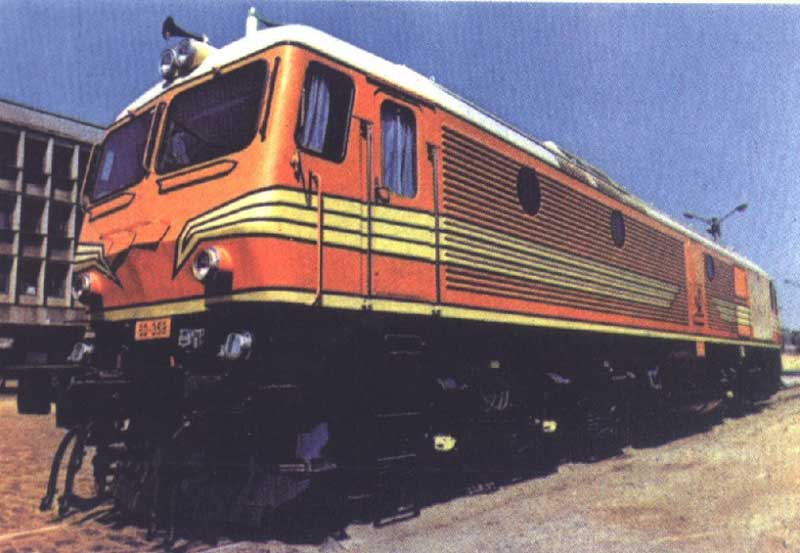

RAI 60 class at Craiova prior to delivery to Iran RAI 60.354 at Craiova prior to delivery to Iran RAI 60.355 at Craiova prior to delivery to Iran RAI 60.359 at Craiova prior to delivery to Iran

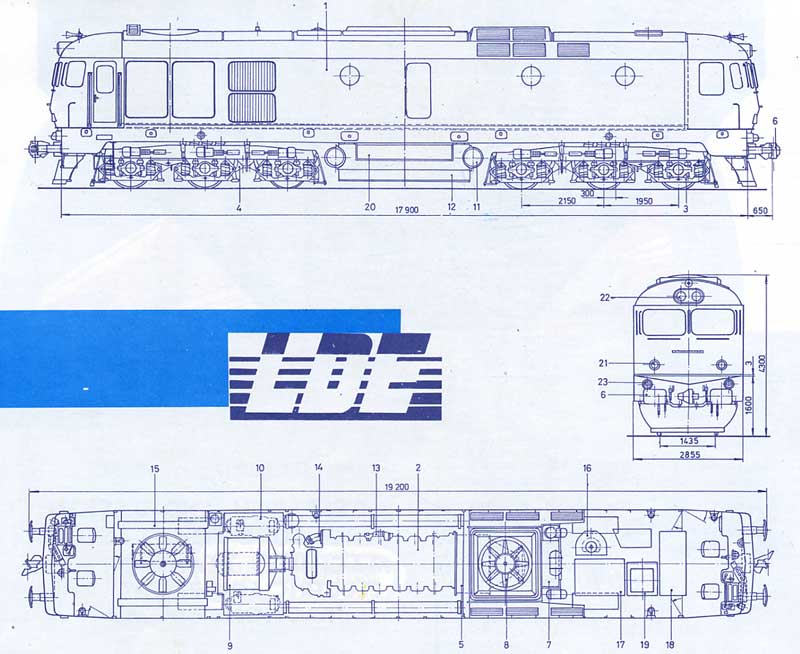

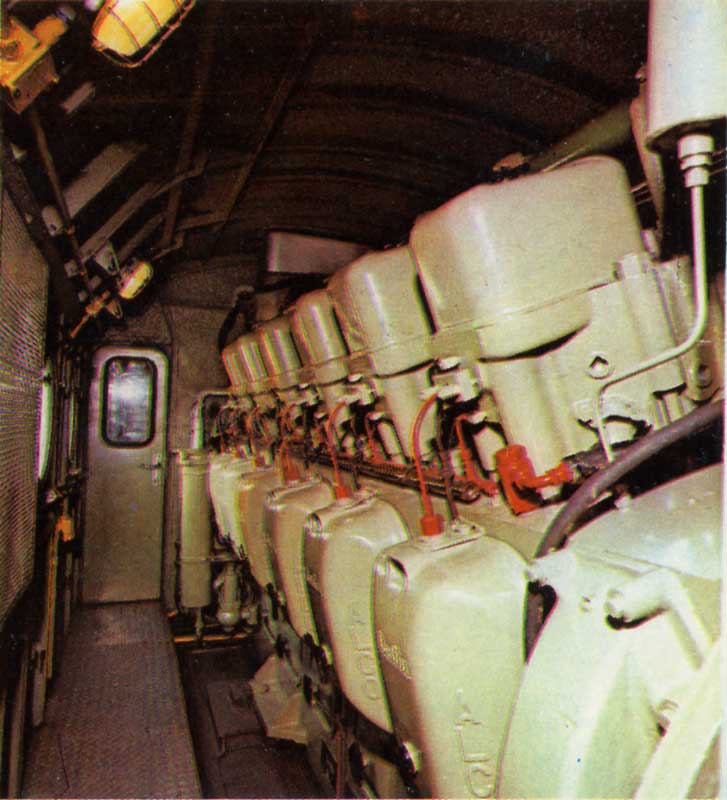

RAI 60.354 in Tehran undergoing modifications Outline drawing from Electroputere leaflet Engine room of a LDE2640 showing the 12-R251 ELO engine
